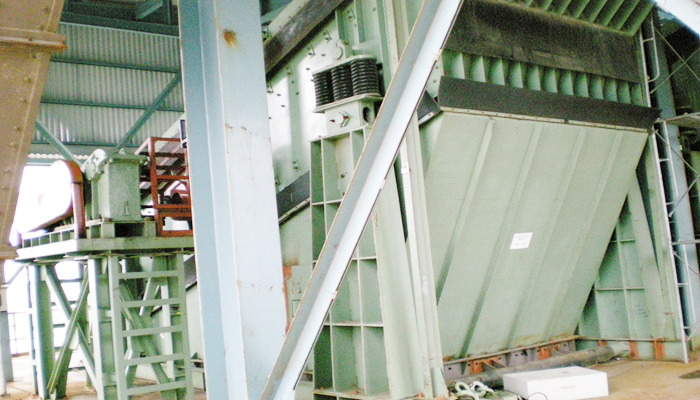

Circular Motion Vibrating Screen

Circular Motion Vibrating Screen

Mining vibrating screen

The moving road of this vibrating screen is similar as a circle, so it is called Circular Motion Vibrating Screen.

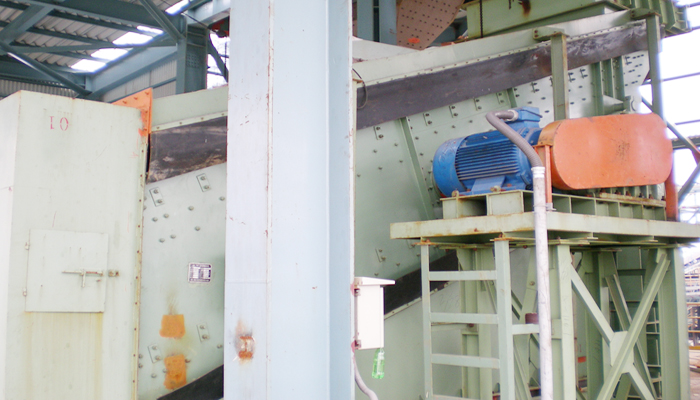

Circular Motion Vibrating Screen mainly consists of screen box, screen net, vibrator, damping spring device, chassis and other components. The side plates are made of high-quality steel plates. The vibrator is installed on a side plate of the screen box. Driven by the motor, the eccentric block of the vibrator would rotate at a high speed under the motivation of triangular belt. High-speed rotation further exerts strong centrifugal inertia force to stimulate the screen box move in a circular motion within specific amplitude. During operation, materials on the inclined screen surface are subjected to the impulse transmitted from the screen box so that they are put in a continuous throwing motion. When materials fall onto the screen surface, particles smaller than the screen size are sieved out to achieve classification.

Machine video
Feature & Benefits
  • The sieve beam and the screen box are connected by high-strength bolts without welding.
  • Having Stable Performance & High Screening Efficiency,large processing capacity and long life.
  • Advanced structure, using eccentric block as exciting force, strong exciting force, low power consumption, low noise.
  • Adopt perforated sieve plate punching sieve or steel sieve mesh in order to prevent blockage.
  • Users can freely select different numbers of layers and specifications of the screen which can satisfy different production demands through simple screen replacement operation.
  • Adopt the latest technology. The vibration amplitude is strong and adjustable, the material sieve line is long, multi-layer screening, and the screening efficiency is high.
  • It is widely used for grading and screening materials in the following fields: minerals, quarry, building materials, energy, power,water conservancy and coal,transportation, chemical industry, smelting and so on.
